Nominal capacity
Two process modules · batch rectification
Mash distillation and batch rectification are two independent process modules.
Each process unit has a clear role: distillation separates alcohol from the mash, a dedicated column removes the heads fraction, and rectification brings the product to its target specifications.
Continuous mash column + heads removal / rectification column with 850 L pot
500 L/day is the nominal output. Depending on the feedstock, output may be slightly higher or lower when the operating conditions are maintained.
Mash distillation and rectification operate as two independent modules.
Before starting, the operator checks that the equipment is ready, enters the crude spirit volume, measures its initial alcohol strength and selects the agreed settings. Mash preparation and readiness checks remain part of the on-site work.
Using the inputs and settings, the control system calculates fraction take-off and the estimated cycle duration, and regulates heating and take-off rate. The operator monitors rectification and responds to system messages.
The system switches operating modes to collect the specified fractions in sequence. The operator prepares and connects the required vessels in advance according to the equipment layout.
Fewer manual switching operations during a cycle lasting several hours, a clear operating sequence and a process history. Product quality also depends on feedstock, preparation and adherence to the process requirements.
New interface: RU / EN / DE / FR / AR. The version and control interface languages are confirmed for the selected configuration.
Cloud-based statistics provide access to operating parameters and history. The customer receives data for monitoring production, while the technical team uses it to analyse operation and provide remote assistance.
We define the statistics provided, data access and network connection when selecting the control system. Monitoring parameters does not replace the on-site operator.
Mechanical components, electrical protection and control algorithms work together. The specific devices and responses to deviations are defined by the project and described in the documentation.
Pressure and temperature monitoring, specified safety valves and connection checks help monitor the condition of process equipment.
Earthing, protective devices and selected electrical components form part of the connection scheme. Site power supply and protection requirements are provided with the documentation.
The system logs specified errors, notifies the operator and performs the programmed response: limiting operation or stopping the relevant units. Responses depend on the sensors and algorithms of the selected version.
Select a protection scenario
If monitored parameters deviate, the operator receives a system message. The cause is checked using readings, the event log and operating procedures; the equipment response follows the specified protective scenario.
Automation helps detect and respond to the specified deviations. Correct connections, maintenance and the actions of a trained operator remain essential operating requirements.

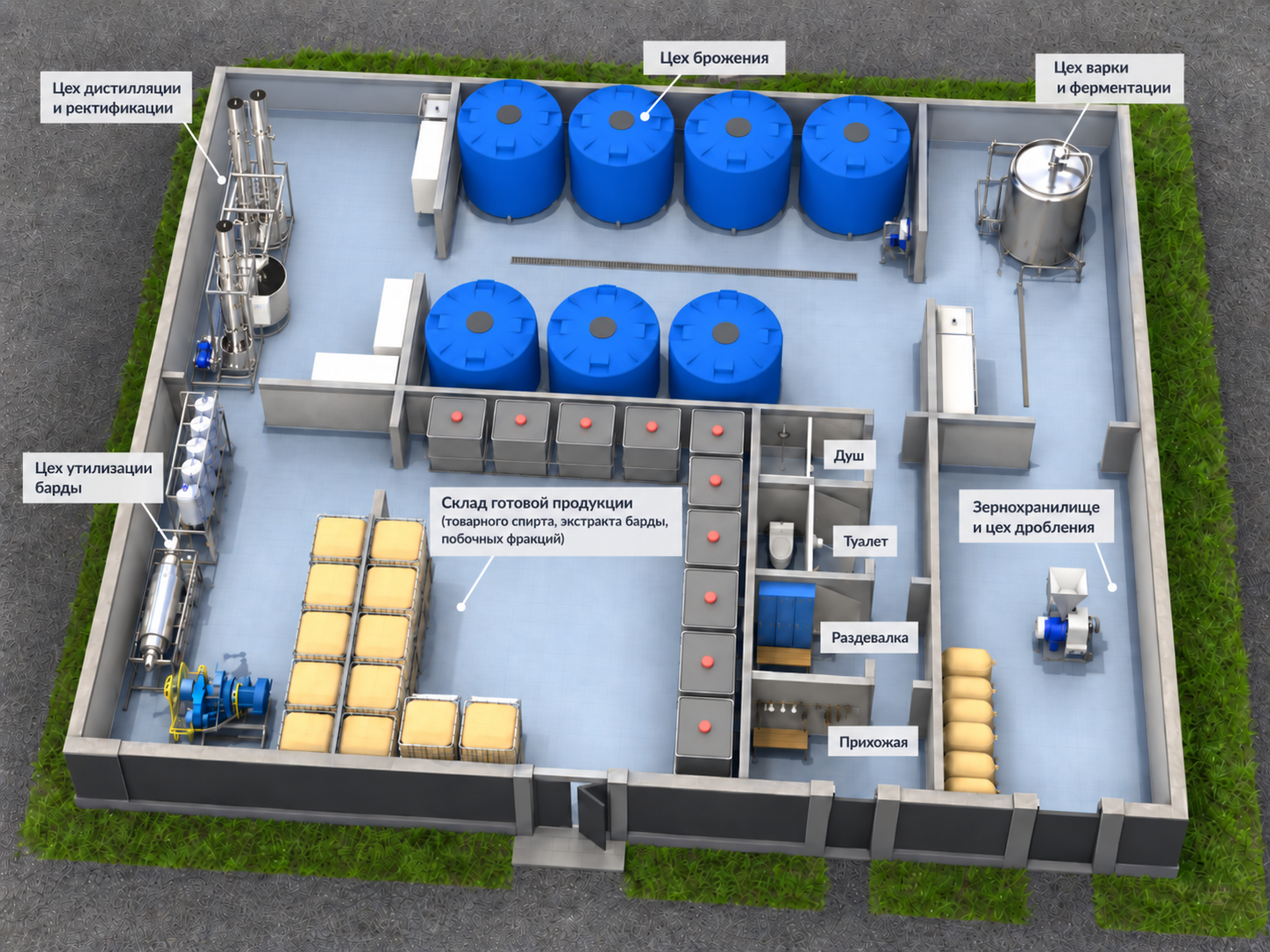

Site layout
We agree on module positions, connections and working aisles to suit your premises. The plan includes the main plant and auxiliary production areas.
We define the connection points for electricity or steam, water and drainage. We account for the selected heating and cooling options.
We plan aisles and access to control panels, pumps and connections so the operator can monitor the plant and service its components comfortably.
We allow space for fermentation, finished product and auxiliary equipment. The areas are selected according to the feedstock, and we agree on their layout at the site.
We determine the exact area for the premises and selected configuration
Send us the floor plan or room dimensions, ceiling height and utility locations. We use these to agree on the arrangement of modules, auxiliary areas and maintenance access.
We select an electric or gas-fired steam generator using natural gas or LPG from a storage tank. We account for available energy, required power and operating costs. Pellets and coal are considered as an alternative or backup option.
We confirm operating values, installed power and actual power consumption for the selected configuration.
Approximate values. Actual consumption depends on operating mode and heat source efficiency.
Energy efficiency: energy use per litre and useful heat recovery. We compare options using your site's operating mode and utilisation.
Lower costs for water, wastewater disposal and additional heating
The cooling package is agreed separately. We account for its electricity consumption and the site's actual demand for heat.
In the version with indirect steam heating, steam transfers heat through a heat exchanger. The resulting condensate returns to the steam generator through a separate circuit.
Returning already heated water reduces the need for water treatment and reheating. We calculate the actual benefit for the heat supply scheme and operating conditions.
The steam and condensate circuit and the cooling circuit perform different tasks. Indirect heating, the return scheme and water requirements depend on the selected version.
Quality and support
Producing the selected grade requires suitable feedstock, proper mash preparation and adherence to production conditions. Lux uses grain feedstock; Alpha uses wheat, rye or a mixture of both.
For each feedstock, we define preparation, the processing cycle and target ethanol specifications. Suitability and expected yield are confirmed in the process sheet.
We select the process for food-grade or industrial ethanol applications. Lux and Alpha grades require suitable grain feedstock and compliance with process requirements.
Wheat, rye or a mixture of both
Grades under GOST 5962-2013 can be obtained with suitable feedstock and compliance with the full set of process requirements.
We assemble the plant at our site and connect the control system. In the buyer’s presence, we check the controls, sensors and pumps, verify that the equipment is complete, and inspect assembly quality. We demonstrate how to assemble, start and maintain the equipment.
Assembled plant with the control system connected
Controls · sensors · pumps
Assembly · start-up · maintenance
Dismantling with the buyer present
We assemble the equipment at our site and connect the control system. We show you the integrity of the structure and the quality of the components and assembly, and check the configuration against the scope of supply.
We check the controls, sensors and pumps in the buyer’s presence. We show the main components and connections and explain their functions.
We walk you through the dismantling and assembly sequence and the procedures for starting and maintaining the plant. We show the connections and components the operator will work with.
In the buyer’s presence, we dismantle the plant for transport, pack it and ship the equipment. We show how the dismantled sections are connected during subsequent assembly at the customer’s site.
The customer sees the assembled equipment and its preparation for transport, and receives practical guidance on assembly, start-up and maintenance.
What we agree before manufacture
The selected model's process units, control system, operating documentation and agreed support programme.
Steam generator, water treatment, autonomous cooling, vessels, mixers and feedstock preparation equipment, according to the project specification.
Premises, connections, installation and qualified personnel for start-up. Before shipment, we provide requirements and assign responsibilities.
Final supply boundaries, additional systems and each party's work are defined in the specification and contract.
Documentation for assembly, connection, operation and maintenance of the selected model.
Mash preparation and processing conditions for the selected feedstock, tailored to food or technical applications of ethanol.
Training in mash preparation, operator tasks and production line operation under the agreed programme. We help prepare for remotely guided commissioning.
Help with commissioning, operation, settings and diagnostics. We review operating parameters and history, including cloud-based statistics.
The standard arrangement is remotely guided commissioning and support under the agreed programme. The customer organises on-site work and provides qualified personnel and an operator.
We provide documentation and process instructions, train staff to operate the line, and help with settings and diagnostics. Process parameters and history, including cloud-based statistics, help investigate issues together with the customer.
If a task requires a specialist on site and the team is available to travel, a visit can be arranged separately. The scope of work, fee and timing are agreed separately.
Your next step
Specify the intended ethanol use, required volume and contact details. We will add your selected model, feedstock and steam source to the request. We will prepare a proposal with the configuration, site requirements and supply price.
Message us
Contact and support: Russian and English
The equipment, documentation and support provided are defined in the specification and proposal. The customer organises installation work and site preparation. Commissioning is primarily guided remotely; a possible specialist visit is agreed separately according to need, team availability, fee and timing.
Yes, with a separately agreed self-contained cooling package. A continuous supply and discharge of cooling water are not required; useful heat reuse depends on the system design and site conditions.
Appropriate supply systems and steam generators are selected for mains gas and for LPG, a propane-butane mixture from a storage tank. Consumption figures for different fuels are calculated separately.
Commissioning and support are primarily provided remotely. If needed and if the team is available, a specialist visit is arranged separately, with a separate fee, schedule and scope of work.
